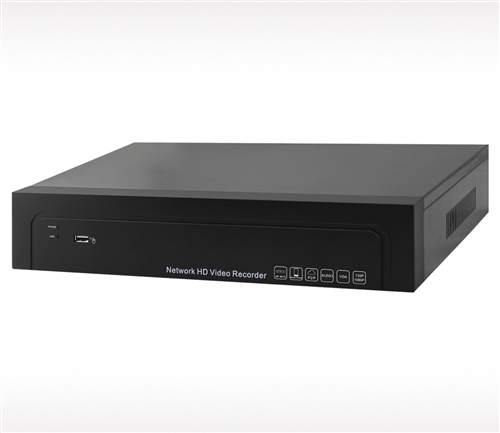

IPCC up to16 Channel HD NVR(NETWORK VIDEO RECORDER)is the network surveillance solution for network-based monitoring of IP cameras, video recording, play back, and remote data access, supporting ONVIF based HD cameras. It works independent of a PC or Computer, and all you need to add is Qty 2 Hard Drives. The basic NVR Unit does not include the Hard Drives.
Model Number | IPCC-HD616HE2 | Operating System | Embedded LINUX operating system | Image Code Control | Image code quality adjustable, variable bitstream and constant bitstream optional | Dual Stream | Each channel can set main stream and sub stream | Video Standard | 1080P(1920×1080)30fps/960P/(1280×960)/720P(1280×720)30fps | Monitoring Image Quality | 1080P(1920×1080) / 960P/(1280×960)/720P(1280×720) | Image Motion Detection | Each screen can set multiple detection areas and set 6-level sensitivity | Recording Playback Quality | 1/4/9ch playback simultaneously | Region Cover | Every channel can set 4 cover regions(IPC Support) | Recording Mode | Support manual , auto, dynamic detection, alarm trigger record mode(Partly needs IPC Support) | Backup Way | Support U disk, USB mobile HDD, USB DVD-RW. network storage and backup | Operation Way | Mouse | Local Login | Username and password | Recording Storage | Local HDD (2 HD bays up to 4TB each), network | External Ports | Video Input | ①9×(1280*960)+sub[720*576]+4Ref.+9Play 9ch 1.3MP IP Camera | ②9×(2048*1536)+sub[960*576]+4Ref.+4Play 9ch 3.0MP IP Camera | ③9×(2592*1944)+sub[960*576]+4Ref.+1Play 9ch 5.0MP IP Camera | / | Audio Input | 9ch network audio input | Video Output | 1ch VGA+1ch HDMI | Audio Output | 1ch RCA output | Network Port | 1 RJ45,10M/100M/1000M self-adaptive LAN port | Alarm Input | 2ch(Optional) | Alarm Output | 1ch(Optional) | USB Port | 2 USB 2.0 ports | Wireless Port | WIFI (optional) | HDD | HDD Port | 2 SATA HDD Ports | MAX Capacity | Each port supports MAX 4TB HDD | Mobile Surveillance | Support( iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone | Power Supply | 12V3A | Power Consumption | ≤20W(without HDD) | Working Temperature | -10℃~+55℃ | Working Humidity | 10%-90% | Dimension | Equipment:350mm×240mm×70mm, Packing: 409mm×365mm×129mm | Weight(without HDD) | 5 lb | Installation Way | Desktop Installation |
|
|
|
|
|
|
|
|
|
|
|
|
|
Key Features
- Chipset: HI3515
- Embedded Linux OS
- H264 High Profile 4.2 Decoding Standard
- Video Standard - 1080i50, 1080i60, 1080P50, 1080P60
- Support 16 channels (Max.) 1080p IP Camera for recording
- Support 4 channel(Max.) playback
- Support 2 Hard Drives
- Max. Capacity for hard disk: 4TB
- Record Method: Manual, Motion Detect, Timeing record, Alarm record
- Record on Local, Flash Drive, Network Storage
- Video Output: 1 VGA, 1 HDMI
- Dimension: 221*212*45mm
- Weight: 2.7kg(without hard disk)
- Input Power: 12V, 5A
- Power: Max. 15W
|
|
|
|
|
|
|
